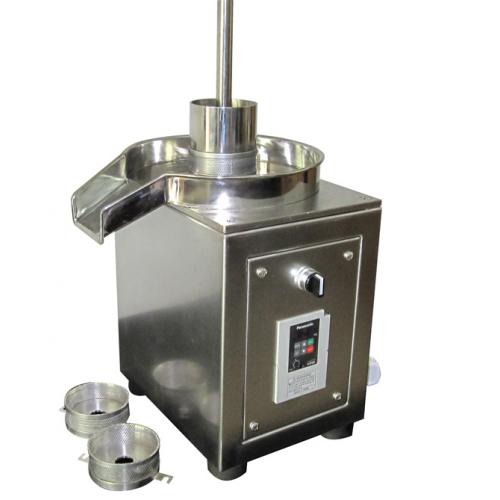

ZLB Series Revolving Granulator

Product Name:ZLB Series Revolving Granulator

Keywords:Revolving Granulator, Granulator
Overview:The machine is mainly suitable for pharmaceutical industry, foodstuff industry, chemical industry.

Details

Descriptions
The machine is mainly suitable for pharmaceutical industry, foodstuff industry, chemical industry, solid drink industry and so on It can make the stirred raw material granulate the needed granule. Especially, it is suitable for raw materials that have sticky adhesive.All parts contacted with raw material in this machine are made of stainless steel. Its appearance is beauty and taste and its structure is reasonable. Its efficiency is high and the granule is beauty. Its discharge is automatic.Therefore it can avoid the damaged conditions caused manual. It is suitable for in line production too.


Technical parameters

Size of miling knife 250 300B 30D
Diameter of graule Φ2-2.2(It may be in accordance with the requirements of customers) Φ1.2-3(It may be in accordance with the requirements of customers) Φ0.5-6(It may be in accordance with the requirements of customers)
Overall dimensions 700×540×1300 800×640×1300 1300×800×1200
Power of motor 3 4 7.5~6
Weight 350 400 780
Porduction capacity 100~200 140~400 300~600

All dates are used for reference only. According to the comdition of material.
