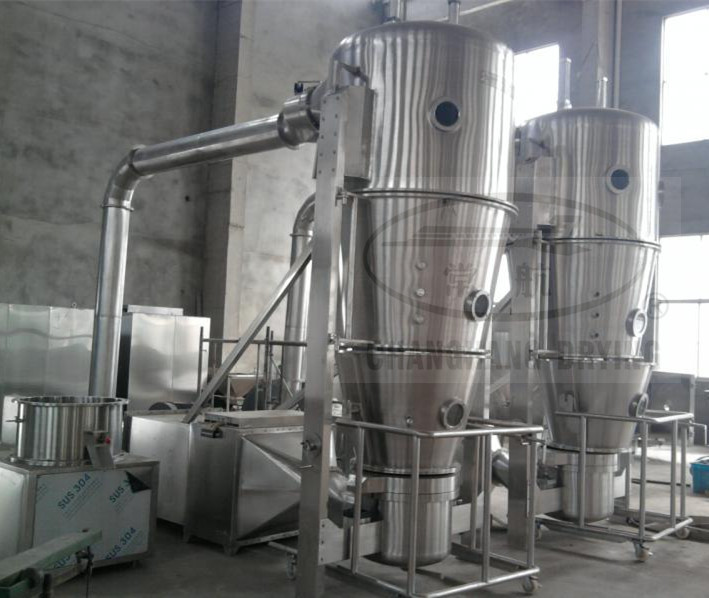

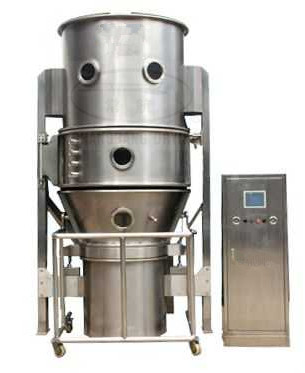

FL Series Fluidized Granulator
Product Name:FL Series Fluidized Granulator
Details
Descriptions
The powder grannle in the container (fluidization)appear in the state of fluidization. It is preheated and mixed with chen and heated air. At the same time the solution of adhesive solvent is fogged and sprayed into the container. It makes the some particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulation is evaporated and the adhesive is solidification. The process is carried out continuously. Finally it forms ideal, uniform and Porous granules.
Applications
◎Phamaceutical industry: tablet, capsule, low sugar or no sugar granule of chinese medicine.
◎Foodstuff: cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
◎Other industries: peticide, feed chemical fertilizer, pigment,dyestuff and so on.
◎Pharmaceutical industry: tablet.
Features
◎Because of powder Granulation, the fluidity is improved and the dust is reduced;
◎Because of powder Granulation, its solving property is improved;
◎The mixing, Granulation and drying can be completed in one step inside the machine;
◎The operation of equipment is safe because the anti static filtering cloth is adapted;
◎The operating personnel can not be damaged if explosion take place because there is releasing hole;
◎The equipment has no dead corner. Therefore the loading and unloading are quick and light and clean. It can meet the requirements of GMP.
Technical parameters
Item | Model | |||||||||||
Name | unit | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | |
container volume | L | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 550 | 670 | |
capalility | kg/p | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | |
steam | presssure | Mpa | 0.4-0.6 | |||||||||
amount | kg/h | 10 | 18 | 35 | 60 | 99 | 120 | 130 | 140 | 161 | 180 | |
power of fan | kw | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22 | |
electric heating | kw | 6 | 9 | |||||||||
noise | dB | when installantion,main machine is separated from fan No more than 75db | ||||||||||
compressed air | pressure | Mpa | 0.6 | |||||||||
amount | m3/min | 0.3 | 0.3 | 0.6 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.1 | |
size | H1 | 2600 | 2600 | 2100 | 2250 | 2250 | 2850 | 2850 | 2850 | 2850 | 3300 | |
(mm) | ||||||||||||
H2 | 250 | 320 | 420 | 490 | 490 | 590 | 640 | 690 | ||||
(mm) | ||||||||||||
H3 | 1900 | 2050 | 2050 | 2600 | 2600 | 2600 | 2600 | 3000 | ||||
(mm) | ||||||||||||
B1 | 1550 | 1650 | 1010 | 1160 | 1320 | 1460 | 1560 | 1660 | 1760 | 1860 | ||
(mm) | ||||||||||||
B2 | 1650 | 1800 | 2060 | 2460 | 2660 | 2800 | 3060 | 3260 | ||||
(mm) | ||||||||||||
1 | 300 | 400 | 550 | 700 | 860 | 1000 | 1100 | 1200 | 1300 | 1400 | ||
(mm) | ||||||||||||
2 | 150 | 180 | 180 | 180 | 250 | 280 | 280 | 280 | 280 | 280 | ||
(mm) | ||||||||||||
L | 850 | 1000 | 1100 | 1250 | 1530 | 1530 | 1530 | 1650 | 1650 | 1650 | ||
(mm) |
All dates are used for reference only. According to the condition of material.
