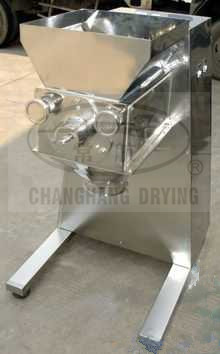

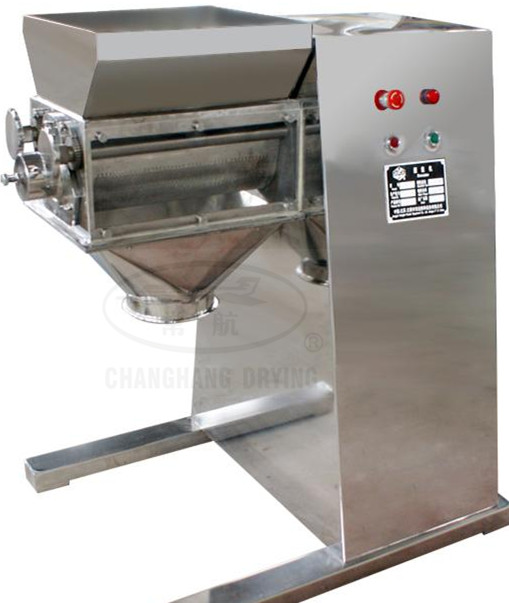

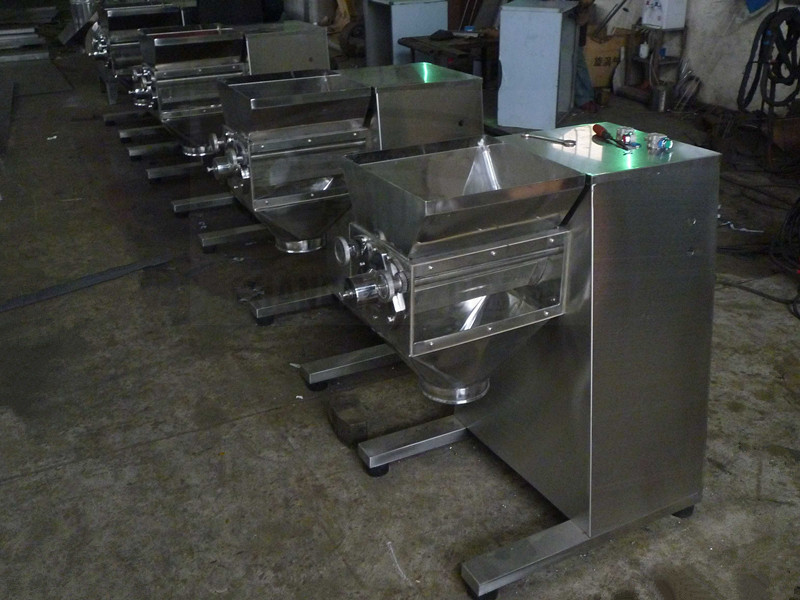

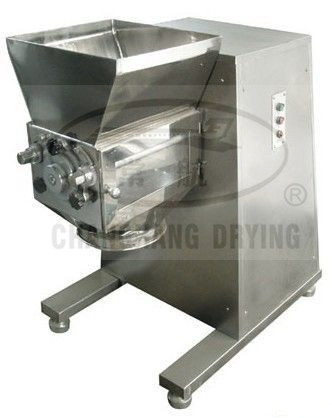

YK Series Sway Granulator
Product Name:YK Series Sway Granulator
Keywords:Swaying Granulator, Granulator
Overview:This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications.
Details
Applications
This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated. All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.
Technical parameters
Model | Model B | Model C (heavy type) | YK160-F-1200(Non-standard type) |
Porductive capacity | 100-200 | 150-300 | 600-1200 |
Power of motor | 2.2 | 3 | 7.5 |
Revolution of roller | 65 | 65 | 10-44 |
Swing angle | 360° | 360° | 412° |
Diameter of roller | Φ160 | Φ160 | Φ160 |
Overall dimensions | 1150×680×1150 | 1260×750×1150 | 3100×930×1250 |
Weight | 300 | 450 | 2200 |
All dates are used for reference only. According to the condition of material.
