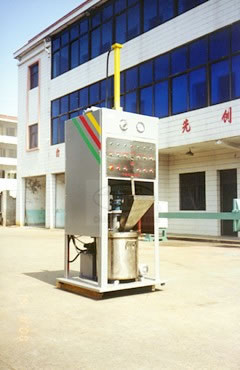

ZJ Series vacuum mixer
Product Name:ZJ Series vacuum mixer
Details
Descriptions
Vacuum mixer is the production of artificial agate, artificial marble, granite and other synthetic resin decorative materials and special equipment. The machine has the advantages of simple structure, convenient operation and repair, in the vacuum mixing operation process at adding various auxiliary materials, preventing air from entering the barrel, reduce the material mixing time and material of bubble defect, improve the product strength, enhance water resistance wear resistance, is an ideal vacuum mixing machine.
The structure characteristics and working principle
The machine adopts a vertical structure, light weight and small occupation area, it is in contact with the material parts are all made of stainless steel material, the barrel to contact material by polishing the surface processing, convenient cleaning materials. Stirring shaft selection cycloid reducer transmission torque, small volume, long service life. Bucket close after a certain pressing force, ensure the sealing performance of the barrel cover and the barrel mouth, reduces the vacuum time, hydraulic lift when subjected to electric contact list control, can automatically stop.
The mixer before prepared resin filler into barrels, close the lid under normal pressure stirred for a certain time, and then the vacuum, while maintaining a vacuum, adding the provisions of other auxiliary materials, continue to stir for a certain time after discharging, carry out next forming process.
Technical parameters
|
All dates are used for reference only. According to the condition of material.
